How to Use the PosiTector 200 to Measure 10:02
Learn how the PosiTector 200 Ultrasonic Coating Thickness Gage non-destructively measures coating thickness over wood, concrete, plastic, and more using proven ultrasound technology.
Advanced Ultrasonic Measurement for Non-Metallic Surfaces

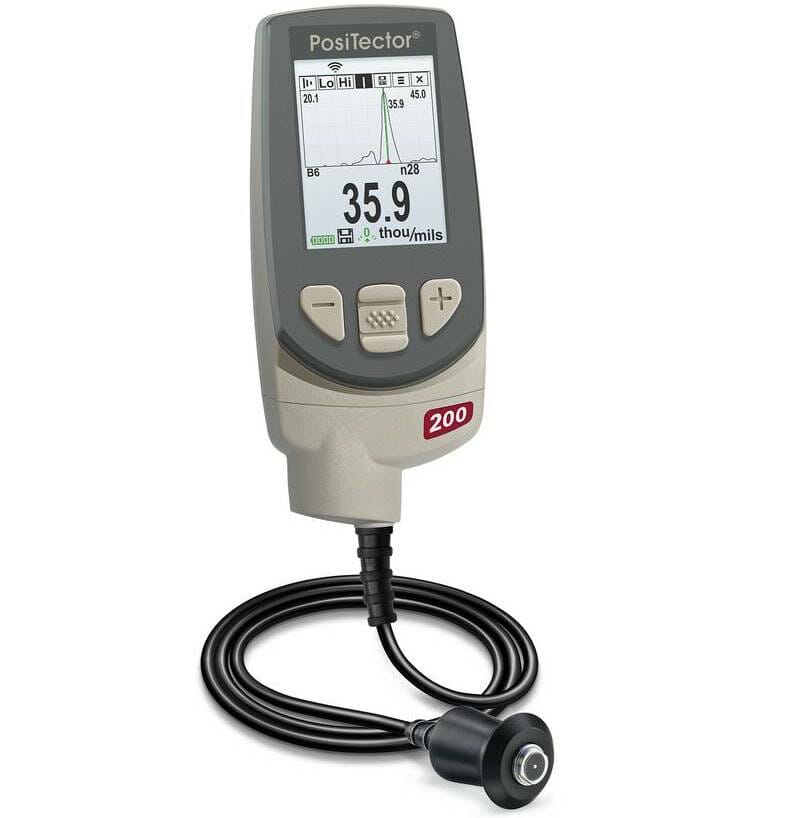

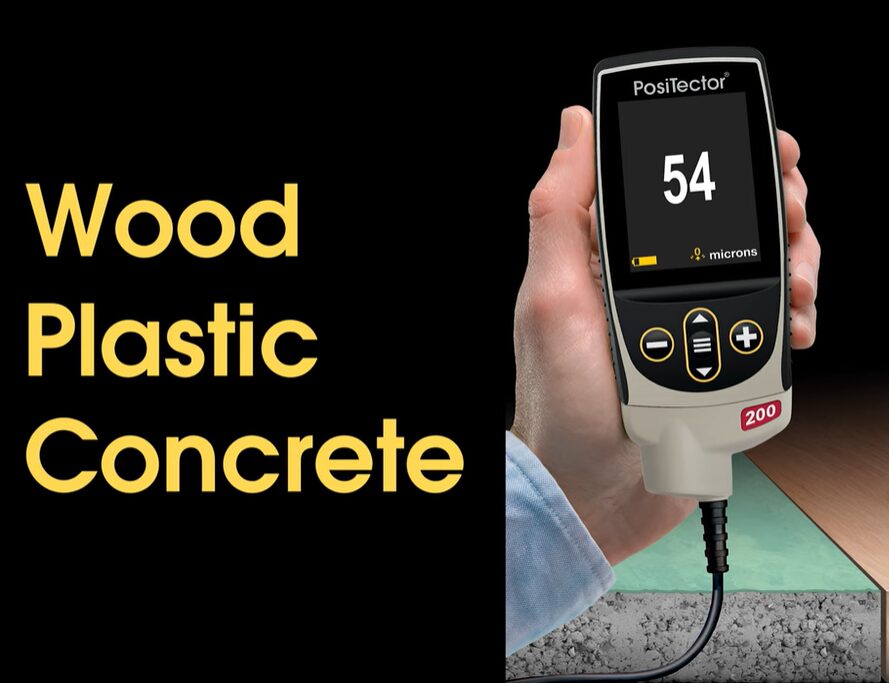

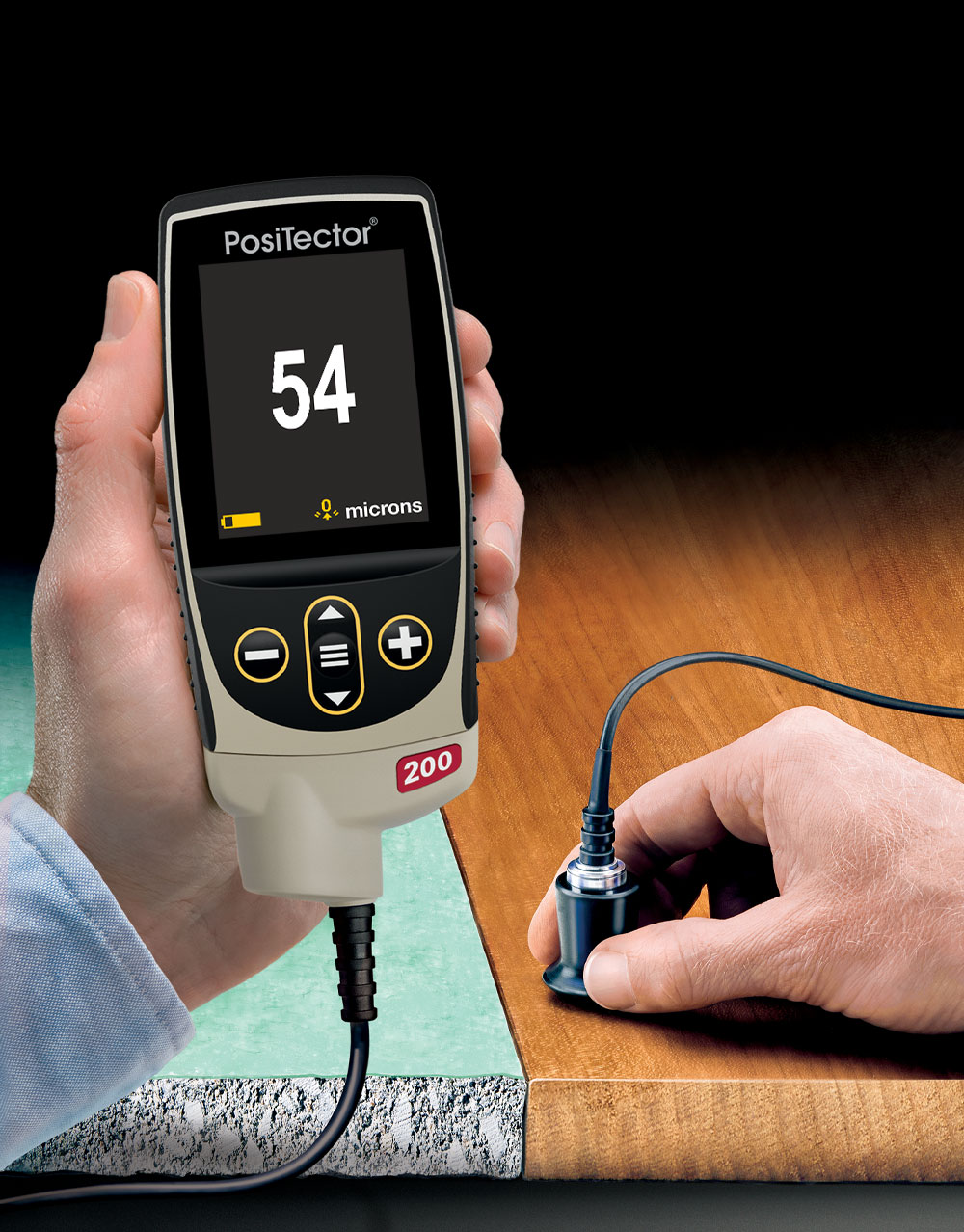

The PosiTector 200 is a professional-grade ultrasonic coating thickness gauge designed specifically for non-metal substrates such as wood, concrete, fiberglass, plastics, and composites. Unlike magnetic or eddy-current gauges, which only work on metals, the PosiTector 200 uses advanced ultrasonic pulse technology to deliver fast, accurate, and non-destructive coating thickness measurements.
Available in both Standard and Advanced models, it provides the flexibility to measure total coating thickness or, in advanced mode, even identify and measure up to three individual coating layers. This makes it invaluable for industries such as construction, flooring, marine, composites, restoration, and furniture finishing.
As the official UK distributor and DeFelsko Authorised Service Centre (DASC), DFT Instruments ensures every PosiTector 200 is supplied with full calibration, certification, and local service support — giving you the confidence that every reading is accurate, traceable, and backed by experts.
Features
-
Instant-Use Performance – Powers on and measures immediately—no setup or calibration delay.
-
Vibrant & Tough Touchscreen – Robust 2.8″ colour display with revamped keypad ensures clarity and responsiveness on-site.
-
Rugged Weatherproof Build – An IP65-rated, sealed enclosure stands up to dust, water and the physical demands of industrial environments.
-
Modular PosiTector Platform – One gauge body transforms with ease to handle different probes—from ultrasonic to surface profile, dew point, and more.
-
Smart Connectivity – Seamless data transfer via USB, WiFi, or Bluetooth to PosiSoft on PC, Mac, or mobile devices.
-
Traceable Calibration Certainty – Includes a long-form Certificate of Calibration traceable to UKAS/NIST (or PTB), ensuring confidence during inspections and audits
-
Standards Compliant – Adheres to ASTM D6132 and ISO 2808 specifications for reliable industry measurement.
Why Testing Matters
- Measure Where Other Gauges Can’t
Traditional dry film thickness gauges work only on metals. The PosiTector 200 fills the gap by providing reliable, non-destructive measurements on non-metal substrates such as wood, concrete, fiberglass, composites, and plastics. - Protect Against Failure
Correct coating thickness is essential for protecting surfaces against wear, corrosion, moisture ingress, and UV degradation. Ultrasonic measurement helps verify that protective layers are applied correctly, reducing costly defects and rework. - Verify Multi-Coat Systems
Many real-world applications involve multiple layers — primers, barrier coats, and topcoats. The PosiTector 200 Advanced model can display up to three distinct layers, ensuring compliance with specifications and helping to identify problems within a system. - Support Compliance and Quality Control
Meets ASTM D6132 and ISO 2808 standards for ultrasonic thickness measurement, making it suitable for third-party inspection and audit documentation. - Applications Across Industries
- Construction & Flooring: Verify paint, sealants, and epoxy systems on concrete or timber.
- Marine & Fiberglass: Inspect barrier coats and gel coats on boats and yachts.

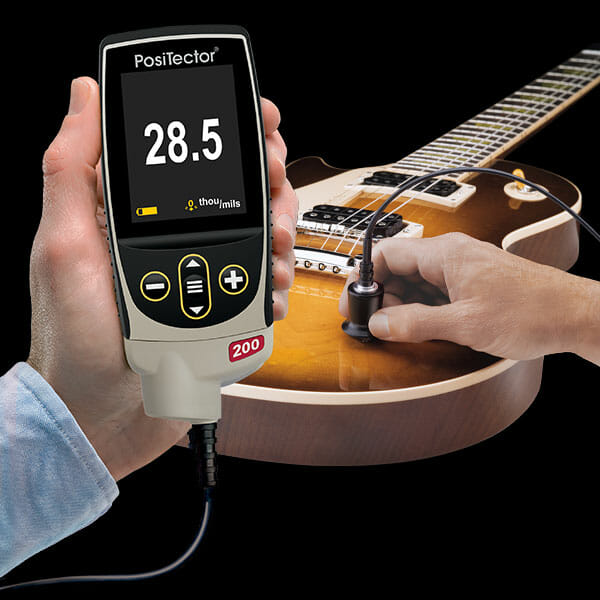

- Furniture & Woodworking: Ensure uniform finish thickness for quality assurance.
- Industrial Plastics & Composites: Validate coatings used in pipelines, aerospace, or automotive composites.
Why Choose DFT?
-
Official UK Distributor
Guaranteed supply of genuine DeFelsko instruments, with full manufacturer support and warranty. -
Local Calibration & Certification
Every instrument is delivered with a long-form certificate of calibration traceable to UKAS/NIST/PTB. Our in-house service centre provides fast recalibration — often within one working day. -
Decades of Expertise
With more than 25 years in inspection instrumentation, DFT has built long-standing trust with UK contractors, inspectors, and engineers. -
Technical Support Close to Home
Choosing the right probe, couplant, and measurement settings for your substrate can be complex. Our UK-based support team offers expert guidance tailored to your application. -
Full Service Lifecycle
From first purchase to long-term servicing, recalibration, and training, we ensure your PosiTector 200 remains reliable for years of use.
Helpful PosiTector 200 Videos

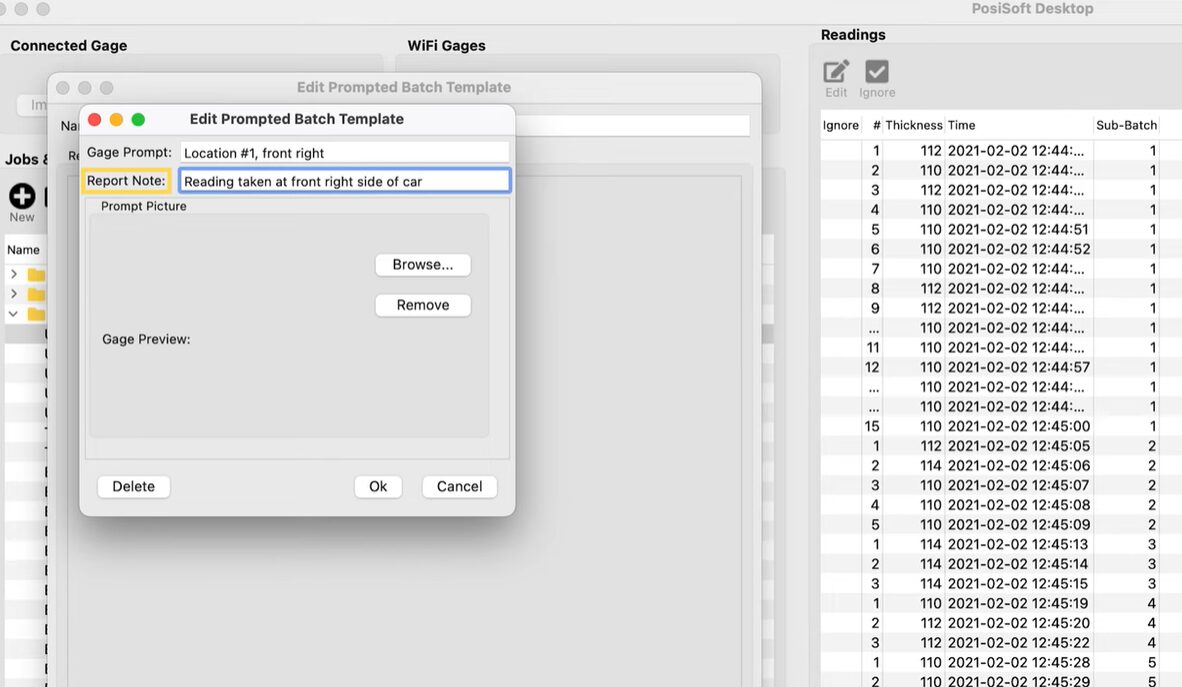

How to Use Prompted Batch Mode 3:55
This video overviews the basic functions of DeFelsko’s Prompted Batch Mode for the PosiTector 200 and other gauges within the range.
Coating Thickness 4:27
A really helpful video to show an overview of the DeFelsko coating thickness gauge range.
Features & Benefits
Simple to Operate
-
Delivered pre-calibrated and ready for immediate use.
-
Large 2.8″ colour touchscreen with intuitive menus and on-gauge help.
-
RESET feature restores factory settings in seconds.
Durable for Field Use
-
Sealed IP65 enclosure is resistant to dust, water, and job-site abuse.
-
Supplied with protective rubber holster and lens guard.
-
Long battery life and ergonomic design for extended inspections.
Precise & Reliable
-
Certified accuracy with included calibration certificate.
-
Graphic mode (Advanced model) visualises echoes to help identify layers and confirm measurement reliability.
-
Built-in temperature compensation ensures accuracy across varying environments.
Flexible Measurement Options
-
Probes available for wood, plastics, concrete, composites, and thick coatings.
-
Advanced models display up to 3 individual layers for multi-coat systems.
-
“Max Thick” mode filters rough echoes to measure maximum coating thickness in porous surfaces.
Connected & Data-Ready
-
Standard models: store 250 readings.
-
Advanced models: store 100,000 readings in 1,000 batches with pass/fail prompts and batch notes.
-
Export results via USB, Wi-Fi, or Bluetooth into the PosiSoft suite (Desktop, Mobile, Cloud).
-
Generate professional PDF reports with graphs, statistics, and images.
Technical Specifications
-

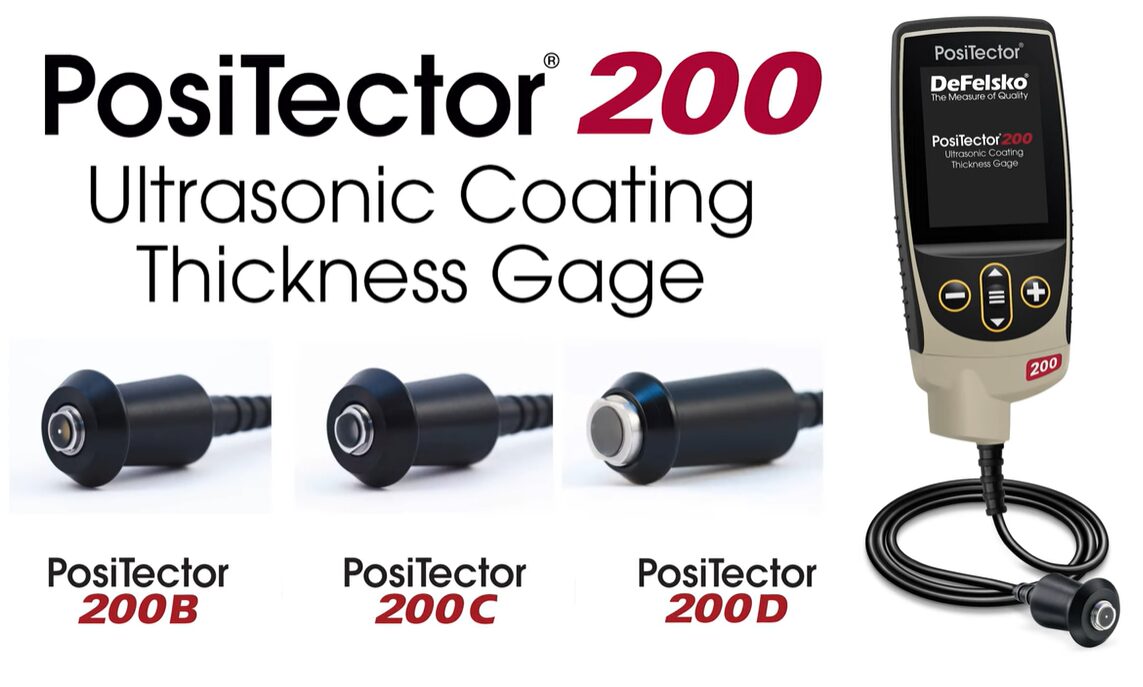

Probe Options:
-
B1 – For thin coatings on wood, plastics, and composites (13–1000 µm).
-
C1 – For coatings on concrete, fiberglass, and thick polymers (50–3800 µm).
-
D1 – For extra-thick coatings on plastics, rubber, or composites (up to ~7600 µm).
-
-
Measurement Range: 13 µm – 7.6 mm (depending on probe).
-
Accuracy: ±(2 µm + 3% of reading).
-
Resolution: 0.1 µm in Hi-Res mode.
-
Standards Compliance: ASTM D6132, ISO 2808, ISO 19397.
-
Operating Temperature: 0–50 °C.
-
Storage: 250 readings (Standard) / 100,000 readings (Advanced).
Comparison Table: PosiTector 200 Standard vs Advanced Models
| Feature | Standard Model | Advanced Model |
|---|---|---|
| Data Storage | 250 readings | 100,000 readings in 1,000 batches |
| Multi-Layer Measurement | Total coating thickness only | Up to 3 individual layers + graphic mode |
| Batch & Pass/Fail | Basic batch storage | Prompted batch mode with images & pass/fail logic |
| Connectivity | USB | USB, Wi-Fi, Bluetooth |
| Ideal Use | Routine checks & QA | Detailed analysis, compliance, and reporting workflows |
Probe Interchangeability
FAQ’s
What makes the PosiTector 200 different from other coating thickness gauges?
Unlike magnetic or eddy-current gauges, which only measure on metal substrates, the PosiTector 200 uses ultrasonic pulse-echo technology to measure coatings on non-metals such as wood, concrete, fiberglass, and plastics.
Can it measure individual coating layers?
Yes. The Advanced model can display thickness values for up to three separate layers, making it ideal for systems with primers, barrier coats, and topcoats.
What is “Max Thick” mode?
This mode is designed for porous or rough coatings. It filters multiple ultrasonic echoes and measures the maximum identifiable coating thickness.
Does it require couplant?
Yes. For smooth surfaces, water is sufficient. For rough or porous coatings, the included glycol-based gel provides better coupling.
What are the typical applications of the PosiTector 200?
-
Flooring: epoxies and sealants on concrete.
-
Marine: gel coats and fiberglass laminates.
-
Wood: paints, varnishes, and clear coats.
-
Industrial: coatings on plastic or composite pipelines and equipment.
How accurate is it?
It provides accuracy to ±(2 µm + 3% of reading). For high-precision applications, the included calibration shims can be used to verify accuracy on-site.
Does it comply with international standards?
Yes. It conforms to ASTM D6132, ISO 2808, ISO 19397, and other relevant standards for ultrasonic thickness measurement.
How often should it be recalibrated?
We recommend annual recalibration. DFT provides local, one-day turnaround calibration services with traceable certificates.
Still need help?
If you experience an issue, check our troubleshooting guide or contact our support team directly. As a DeFelsko Authorised Service Centre (DASC), DFT Instruments provides calibration, repair, and technical assistance locally in the UK.
Find out more about the PosiTector 200 and all the features that come with it
Kit Contents:
-
PosiTector 200 body (Standard or Advanced)
-
Selected probe (B1, C1, or D1)
-
Couplant gel and calibration shims
-
Protective holster, wrist strap, USB cable, batteries
-
Carrying case
-
Long-form calibration certificate (traceable)
-
2 year warranty
Looking for reliable, non-destructive thickness measurement on wood, concrete, fiberglass, plastics, and composites? The PosiTector 200 Ultrasonic Gauge is the trusted solution, backed by UKAS-traceable calibration and full local support from DFT Instruments.
📞 To enquire about this product, contact our team today on: 01442 879494 or Complete the form.

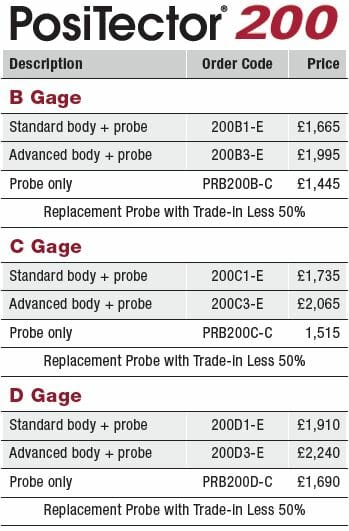

PRICES FROM £1,780
